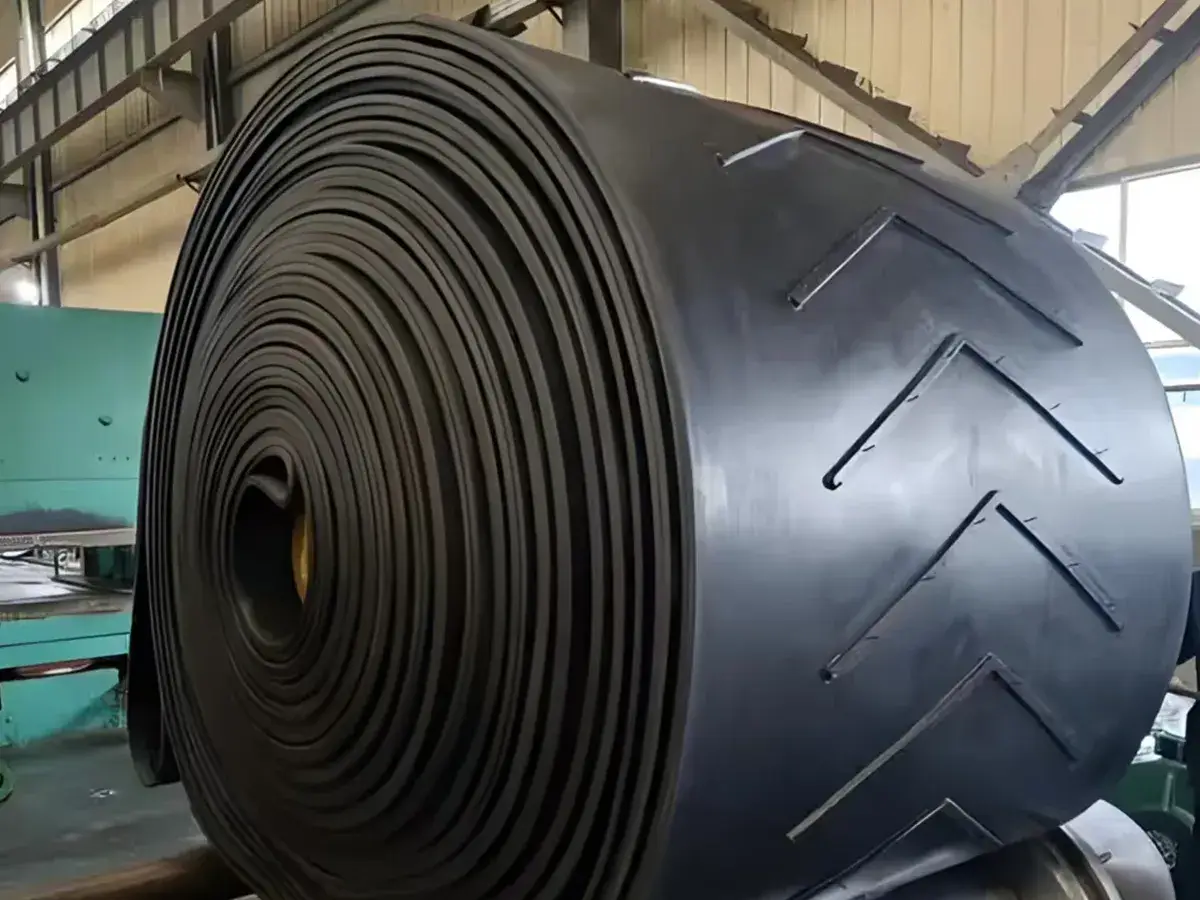

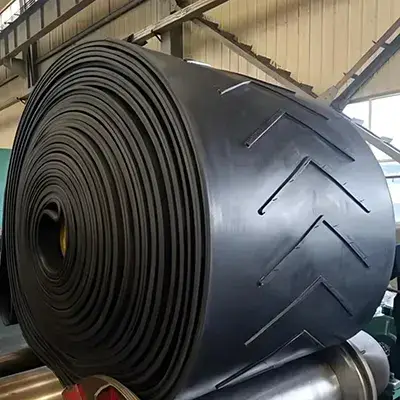

Chevron Conveyor Belt / Profiled Conveyor Belt

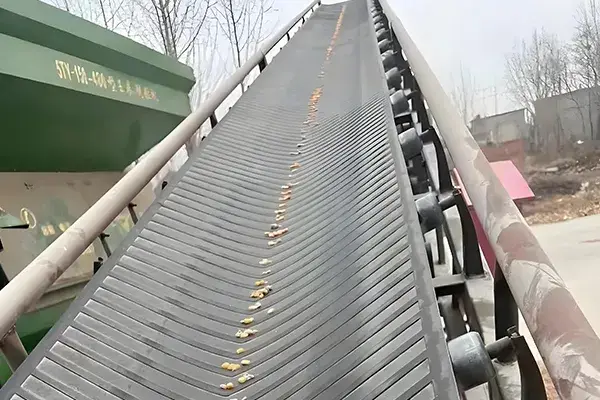

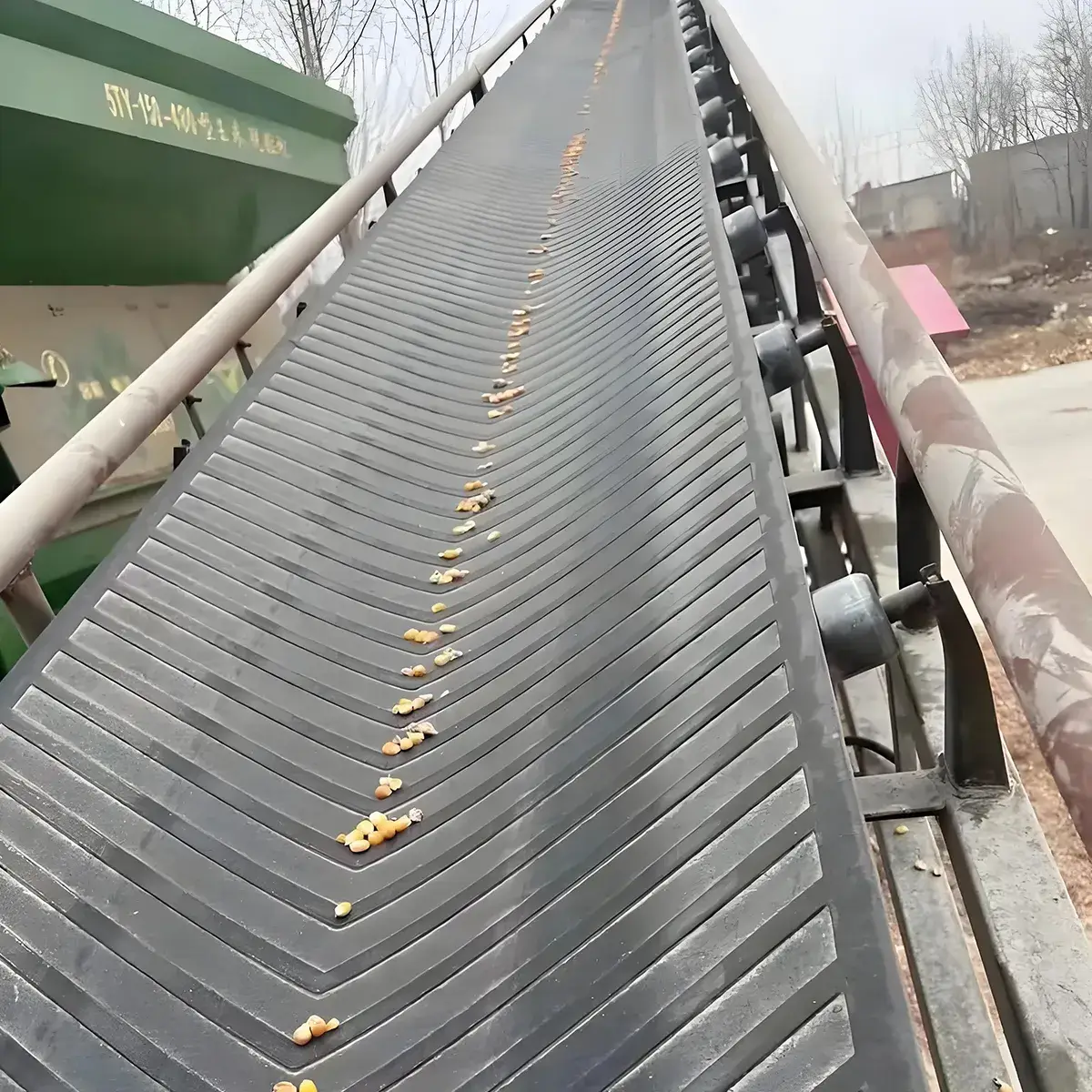

Chevron conveyor belts are inclined belts including a patterned (cleated) working-side cover, a flat cover on the opposite side, and a fabric carcass composed of cotton (CC), polyester-cotton (CP), nylon (NN), or polyester (EP). Their primary advantage lies in anti-slip performance and steep-incline capability, addressing the propensity of ordinary belts to lose material during ascents.
Key Advantages
- The cleat pattern creates a physical barrier and embedded shear that counters backward slip from gravity, keeping material moving in sync with the belt.
- Cleat support raises the safe conveying angle to 30°–45° (and up to 60° with high-cleat sector patterns), maximizing vertical space use and shortening the horizontal footprint of the conveying line.
- Base belt and cleats can be co-vulcanized from different polymers or compound rubbers to suit the operating conditions.
Main Tread Pattern Types
- V-Pattern: Raised "V" cleats, open or closed, for powders, granules, and small lumps at inclines ≤40°.
- Bar Pattern: Raised transverse bars in fine or coarse spacing, for horizontal transport of packaged goods at inclines ≤30°.
- Grain/Dimple Pattern: Raised nibs for soft packaging or grip-dependent loads; dimpled form for granular material at inclines ≤45°.
- Sector (Fan) Pattern: Half-fan or quarter-circle high cleats that close on troughing, for steep inclines up to 45°–60°.
Product Catalogue
C5-C12 Chevron Belt
-
- C. H. (mm): 6
- C. W (mm): 1240
- C. P (mm): 25
- B. W (mm): ≤ 12119
No. 19 V6 -
- C. H. (mm): 6
- C. W (mm): 2309
- C. P (mm): 25
- B. W (mm): 12000-23000
No. 20 V6 -
- C. H. (mm): 5
- C. W (mm): 1400
- C. P (mm): 100
- B. W (mm): ≤ 12000
No. 8 C5 -
- C. H. (mm): 12.7
- C. W (mm): 9144.4
- C. P (mm): 200
- B. W (mm): ≤ 13000
No. 11 C12.7 -
- C. H. (mm): 3
- C. W (mm): 610
- C. P (mm): 43.7
- B. W (mm): 650-12000
No. 18 -
- C. H. (mm): -2
- C. W (mm): 520
- C. P (mm): 24.6
- B. W (mm): 600-12000
No. 17
C15 Chevron Belt
-
- C. H. (mm): 15
- C. W (mm): 580
- C. P (mm): 250
- B. W (mm): 600-1200
No. 2 Open V C15 -
- C. H. (mm): 15
- C. W (mm): 520
- C. P (mm): 200
- B. W (mm): 600-1200
No. 3 Open V C15 -
- C. H. (mm): 15
- C. W (mm): 300
- C. P (mm): 146
- B. W (mm): 400-1200
No. 6 Open V C15 -
- C. H. (mm): 15
- C. W (mm): 385
- C. P (mm): 256
- B. W (mm): 400-12000
No. 12 Open V C15 -
- C. H. (mm): 15
- C. W (mm): 800
- C. P (mm): 300
- B. W (mm): 850-12000
No. 9 Closed V C15 -
- C. H. (mm): 15
- C. W (mm): 450
- C. P (mm): 250
- B. W (mm): 500-12000
No. 16 closed V C15 -
- C. H. (mm): 15
- C. W (mm): 600
- C. P (mm): 250
- B. W (mm): 650-12000
No. 14 closed V C15 -
- C. H. (mm): 15
- C. W (mm): 550
- C. P (mm): 250
- B. W (mm): 600-12000
No. 15 closed V C15 -
- C. H. (mm): 15
- C. W (mm): 750
- C. P (mm): 250
- B. W (mm): 800-12000
No. 13 closed V C15 -
- C. H. (mm): 15
- C. W (mm): 435
- C. P (mm): 3200
- B. W (mm): 500-12000
No. 7 Open U C15 -
- C. H. (mm): 15
- C. W (mm): 450
- C. P (mm): 160.9
- B. W (mm): 500-12000
No. 22 Open U C15 -
- C. H. (mm): 15
- C. W (mm): 730
- C. P (mm): 300
- B. W (mm): 800-12000
No. 5 C15 -
- C. H. (mm): 15
- C. W (mm): 540
- C. P (mm): 181.9
- B. W (mm): 600-12000
No. 28 Open U C15 -
- C. H. (mm): 32
- C. W (mm): 900
- C. P (mm): 330
- B. W (mm): 1000-12000
No. 31 Open U C32 -
- C. H. (mm): 20
- C. W (mm): 510
- C. P (mm): 250
- B. W (mm): 600-12000
No. 33 Open U C20
C25 Chevron Belt
-
- C. H. (mm): 25
- C. W (mm): 750
- C. P (mm): 450
- B. W (mm): 800-12000
No. 23 Open U C25 -
- C. H. (mm): 25
- C. W (mm): 450
- C. P (mm): 330
- B. W (mm): 500-12000
No. 24 Open U C25 -
- C. H. (mm): 25
- C. W (mm): 550
- C. P (mm): 330
- B. W (mm): 600-12000
No. 25 Open U C25 -
- C. H. (mm): 25
- C. W (mm): 750
- C. P (mm): 330
- B. W (mm): 800-12000
No. 26 Open U C25 -
- C. H. (mm): 12.5
- C. W (mm): 1067
- C. P (mm): 381
- B. W (mm): 1200-22000
No. 39 Closed v C12.5
